CRL A.D.A. 8.5 Lb. Exterior 105 Degree Non Hold-Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips

See More By CR Laurence

$109.99 each

1 overhead concealed closer
Spring size: A.D.A. - 8.5 lb.
Type: 105 degree no hold open
Interchangeable with All Jackson style overhead concealed door closers
Extended 3/4" long spindle for use with patch fittings and door rail hardware
New adjustable models
UL listed
Conveniently packaged with templates and instructions
Warranty Information and Cross Reference Chart available
Note: This product is Non-Returnable

SKU:

CRL9972

In Stock

Return Policy | Shipping Policy

Product Overview

CRL A.D.A. 8.5 lb. exterior 105 degree non hold-open 3/4" long spindle overhead concealed closer body with mounting clips is A.D.A. Compliant at 8.5 lb. opening force for exterior doors and features a longer spindle approximately 3/4", the preferred length when used in conjunction with patch hardware fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90 degree and 105 degree hold open and non hold-open models are available. Interchangeable with International, Jackson and similar brands of overhead concealed closers. Mounting clips and instructions are included with each door closer body.

Selection

SKU	Color	Case Qty
CRL9972		6

Product Specifications

Brand	CR Laurence

NOTE: Although A.D.A. series door closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.

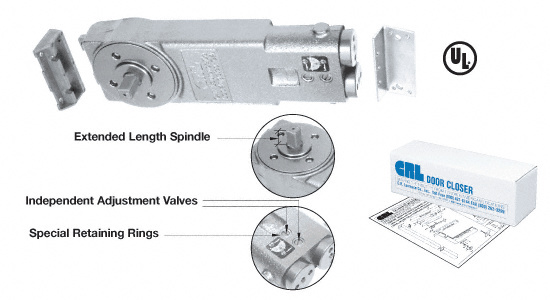

Extended Length Spindle

3/4" length spindle for use with patch fittings and door rail hardware or when extra reach is needed.

Independent Adjustment Valves

Non-critical valve control adjusts both closing speed and latching speed independent of each other.

Special Retaining Rings

Prevent the adjustment valve screws from being backed all the way out of the door closer body.

Weight and Size Limitations

Door weight: 200 lbs.

Exterior door width: 42"

Interior door width: 48"

All doors height: 96"
